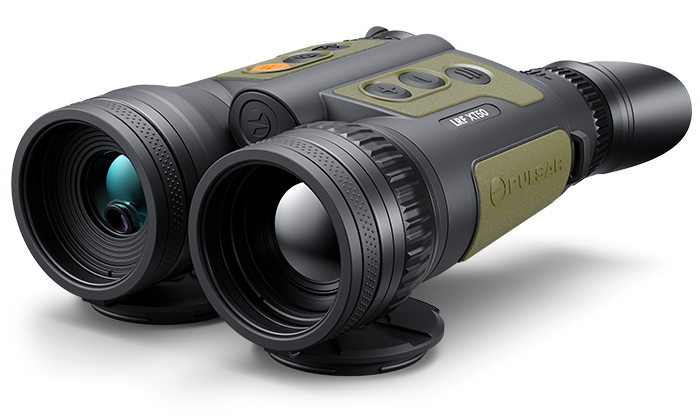

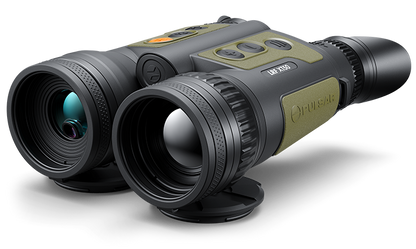

VENTEX XT50

Name: VENTEX XT50
Brand: Pulsar Wildlife USA
SKU: PL77523
Price: 5499.97 USD
Availability: InStock

Thermal Imaging Binoculars

The Ventex XT50 is the flagship of the Pulsar Wildlife line. Its 1280×1024 thermal sensor — over four times the pixels of a standard 640 sensor — paired with a 1280×960 AMOLED display produces image detail that has to be seen through the eyepiece to be believed. Species identification at distance, behavior study in total darkness, survey work in any conditions: this is the instrument for it.

A 17.5° field of view keeps scanning efficient, 2–16x magnification handles everything from panorama to portrait, and true binocular viewing means researchers and observers can stay on glass for hours without fatigue.

Backed by the Pulsar US warranty with US-based support. Register your product after purchase.

SKU: SKU:PL77523

$5,499.97

Sale Sold out

Main specifications

Sensor

@12µm 1280×1024 @ 12 µm

Objective lens

F50 / 1.0

Magnification, x

2-16

FOV (HxV), degrees

17.5 х 14

FOV (HxV), m@100m

30.7 х 24

Diopter Adjustment, D

-5/+4

Detection range

2300 m

Sensor

Type

uncooled

Resolution, pixels

1280×1024 @ 12 µm

Pixel pitch, µm

Sensor NETD, mK

< 40

System NETD, mK

< 20

Frame rate, Hz

Optics

Magnification, x

2-16

FOV (HxV), m@100m

30.7 х 24

FOV (HxV), degrees

17.5 х 14

Diopter Adjustment, D

-5/+4

Interpupillary distance adjustment, mm

62 – 74

Eye relief, mm

Display

Type

AMOLED HD

Resolution, pixels

1024x768

Laser rangefinder

Max. measuring range, m

1500

Measurement accuracy, m

± 1

Safety class for laser equipment according to IEC 60825-1:2014

Wavelength, nm

905

Video recorder

Video / photo resultion, pixel

1280х960

Video / photo format

.mp4 / .jpg

Build-in memory, GB

WI-FI

Wireless protocol

Wi-Fi

Wireless standard

IEEE 802.11 b/g/n/ac (WPA)

Frequency, Ghz

2.4 / 5

Environmental characteristics

Degree of protection IP code (IEC60529)

IPX7 (waterproof)

Operating temperature range, °С

-25 – +50

Connections and compatibilities

Mount type

1/4″ socket

Supported application

Wild Vision

Power supply

Output voltage, V

3.7

Battery type

Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)

Capacity, mAh

3200 (external) + 4000 (internal)

Operating time on battery pack, hat t=22°С

External power supply, V

5V; 9V (USB Type-C Power Delivery)

Weight & size

Body material

Magnesium alloy

Dimensions, mm

197x140x72

Weight, kg

0.95 (batteries included)

View full details

Features Specs Accessories

Over 17 degrees of comfortably wide viewing

Featuring a field of view exceeding 17 degrees, this device provides effortless, comfortable observation. Finding and tracking subjects becomes quicker and easier, while image shake is minimized and situational awareness improved. The high-definition sensor and quality optics ensure precise identification, excellent detail at base magnification, and a more vivid, engaging viewing experience.

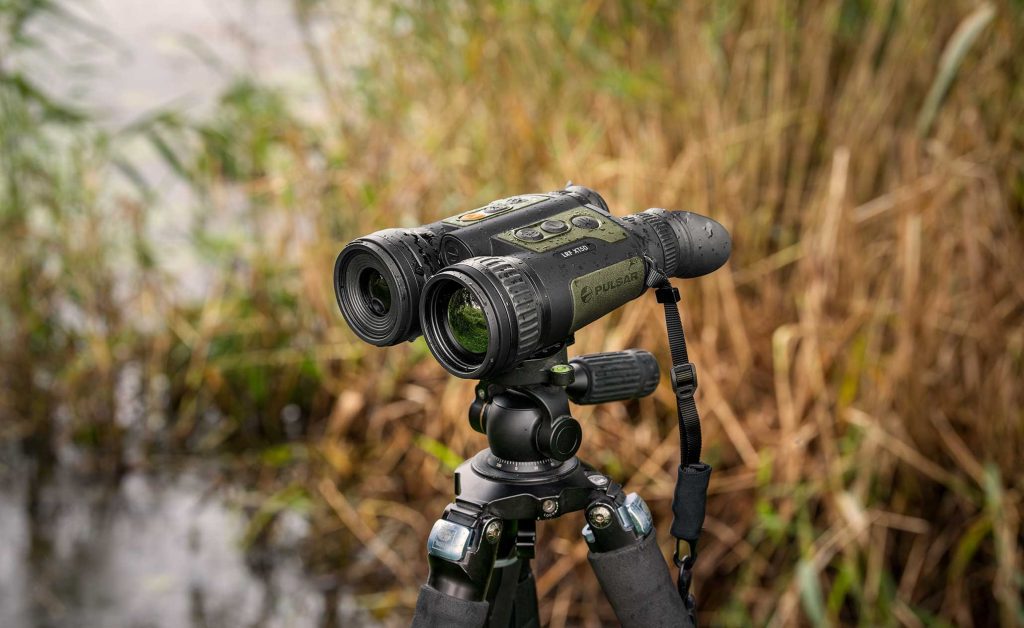

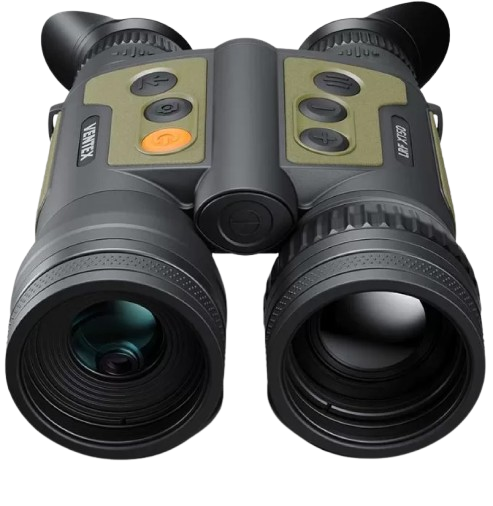

Classic ergonomic design

Built in the tradition of daytime binoculars, these thermal imaging binoculars fit naturally in the hand, offering both visual appeal and user-friendly ergonomics. Six conveniently positioned buttons enable swift, single-touch access to frequently used functions, ensuring that extended observation remains intuitive and enjoyable.

Comfort of observation with two eyes

By utilizing both eyes, these binoculars provide a more natural, less fatiguing viewing experience than single-eye devices. This two-channel approach enhances the detection of subtle or distant objects and improves performance in low-contrast conditions.

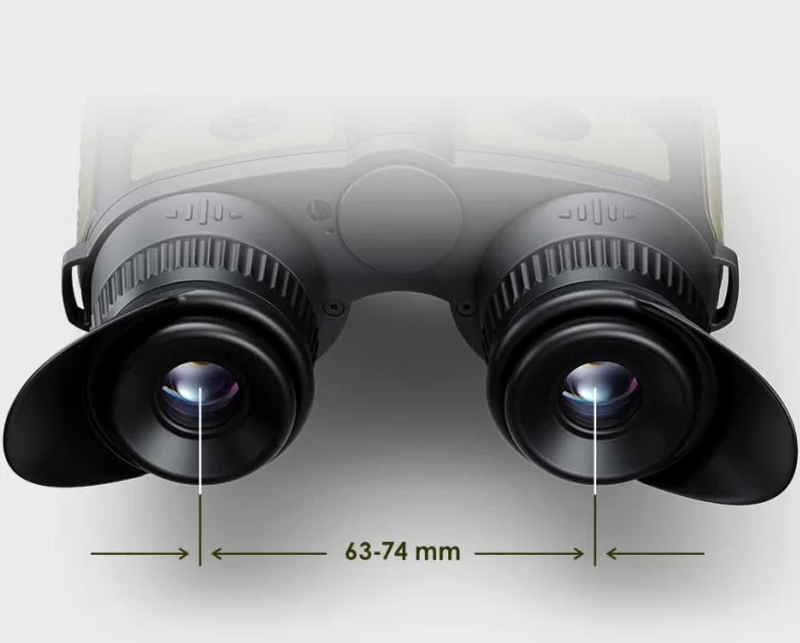

With adjustable interpupillary distance to suit individual users, extended observation becomes more comfortable, precise, and personalized.

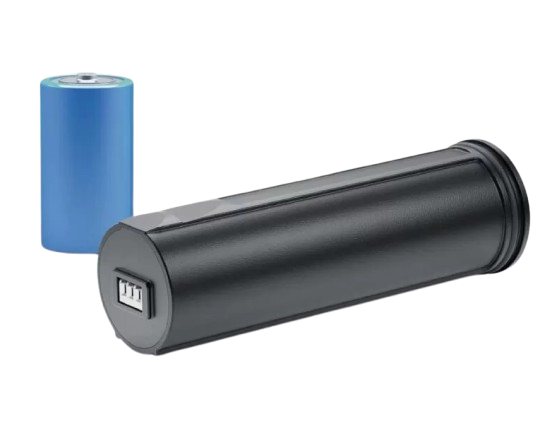

Dual battery system for extended operation

A dual battery system—one built-in and one replaceable—ensures prolonged, uninterrupted use in the field. Thoughtful design details, like an embossed surface on the replaceable battery, allow for swift, confident changes by touch alone, even in total darkness.

This careful approach to power management supports longer observation sessions and a more continuous, rewarding experience.

Built-in precise laser rangefinder

An integrated laser rangefinder allows for accurate distance measurement in single or continuous scanning modes, enabling quick, reliable assessments of any situation. Dependable range data enhances decision-making and fosters greater confidence in the field.
