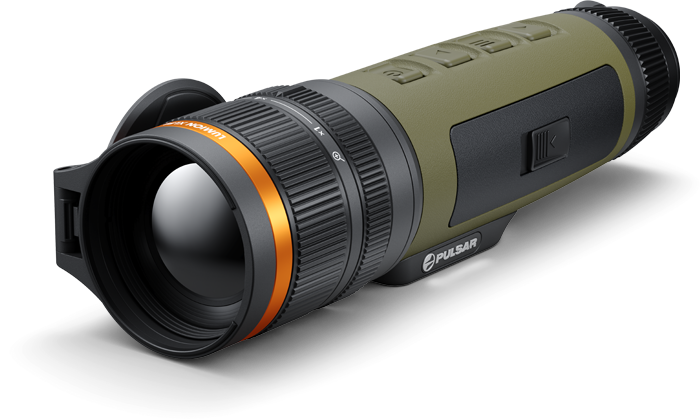

LUMION XL50

LUMION XL50

Thermal Imaging Monoculars

The LUMION XL50 is a compact thermal imaging monocular with a 1024x768 sensor, 2.5-20x magnification, 2300m detection range, IPx7 waterproofing, and 64GB built in memory with a built in video recorder. Shop at Pulsar Wildlife USA.

SKU: SKU:PL77521

Regular price $3,999.97
Regular price Sale price $3,999.97
Sale Sold out

Main specifications

Sensor
@12µm 1024×768
Objective lens
F50 / 1.0
Magnification, x
2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees
14 x 10.5
FOV (HxV), m@100m
24.6 х 18.5
Detection range
2300 m

Sensor

Type
uncooled
Resolution, pixels
1024×768
Pixel pitch, µm
12
Sensor NETD, mK
< 40
System NETD, mK
< 20
Frame rate, Hz
50

Optics

Magnification, x
2.5 – 20 (x8 digital zoom)
FOV (HxV), m@100m
24.6 х 18.5
FOV (HxV), degrees
14 x 10.5
Eye relief, mm
14
Objective lens
F50 / 1.0

Display

Type
AMOLED HD
Resolution, pixels
1024×768

Range performance

Detection range, m
2300 m

Video recorder

Video / photo resultion, pixel
1024×768
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64

WI-FI

Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5

Environmental characteristics

Degree of protection IP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +40

Connections and compatibilities

Mount type
1/4″
Supported application
Wild Vision

Power supply

Output voltage, V
3.0 – 4.2
Battery type
APS 3 Li-ion Battery Pack
Capacity, mAh
6400
Operating time on battery pack, hat t=22°С
7
External power supply, V
5V; 9V (USB Type-C Power Delivery)

Weight & size

Body material
rubber armored reinforced plastic
Dimensions, mm
243x72x90
Weight, kg
0,68
Quantity
View full details

Advanced Pulsar Image Boost technology

ThePulsar Image Boosttechnology ensures exceptional detail, clarity, and contrast. Using advanced image processing algorithms, Lumion captures intricate details in various natural settings, from open skies to dense foliage. This feature enhances the visibility of low-contrast objects, making it easier to spot birds and animals even in challenging conditions. Adjustable thermal sensor sensitivity, along with customizable brightness and contrast settings, ensures a comfortable and immersive observation experience.

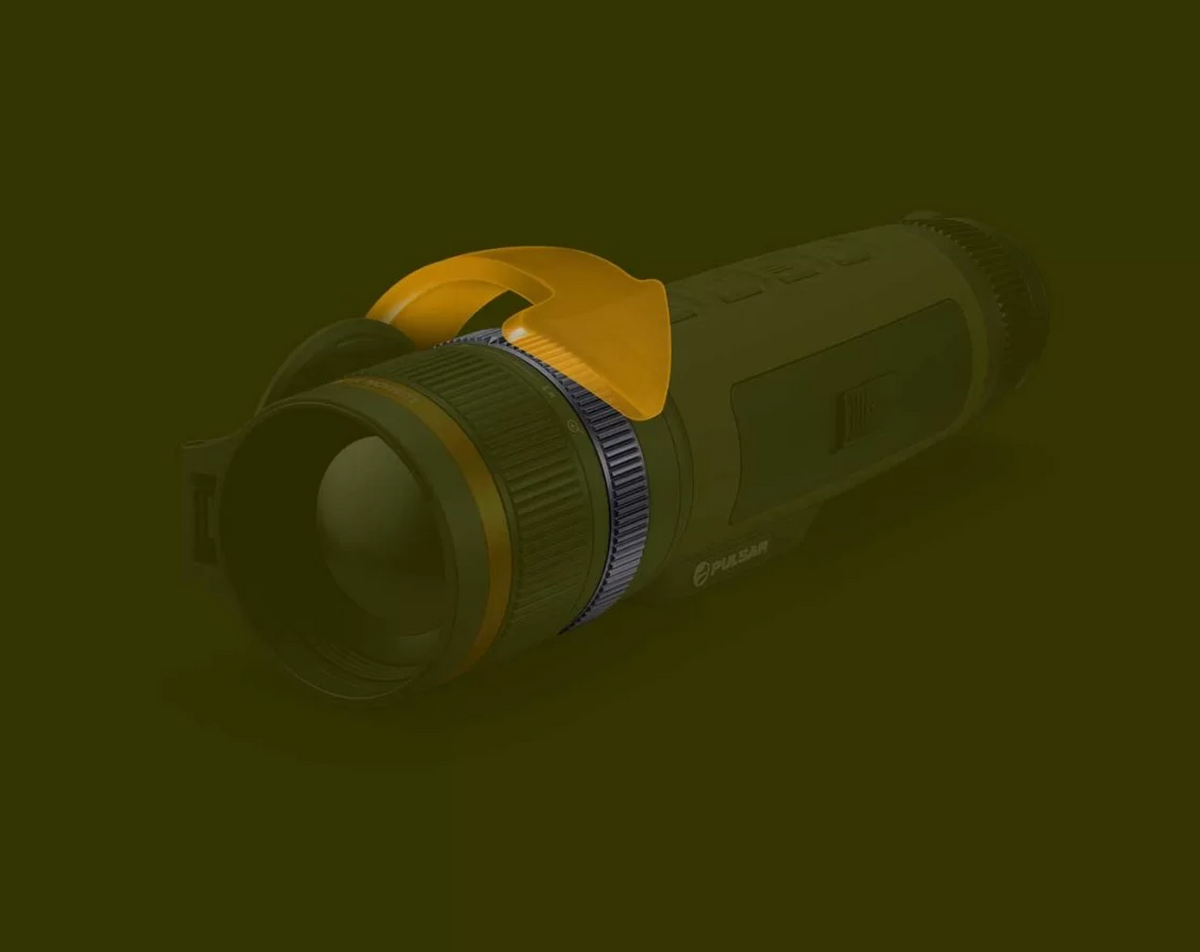

Objective ring zoom control

The Lumion features intuitive zoom and focus rings arranged in a professional camera-style layout. This design allows users to quickly achieve the perfect image and magnification with one hand, making it ideal for on-the-go nature observation.

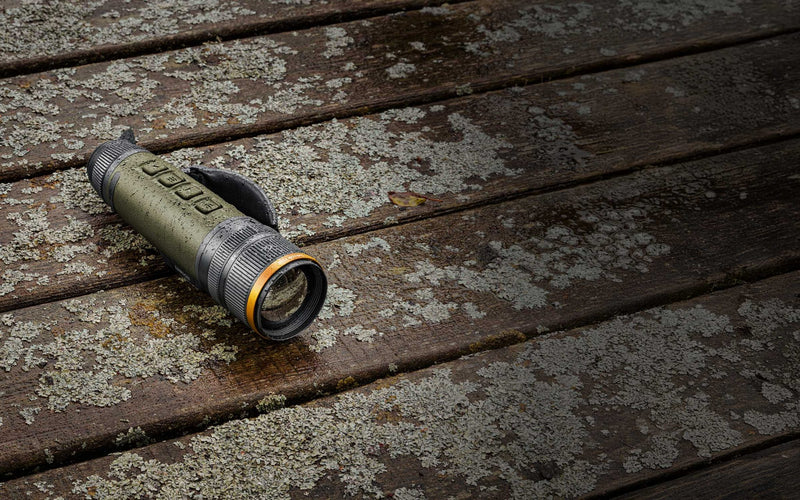

Built for the toughest conditions

Engineered for the outdoors, the Lumion performs flawlessly in temperatures ranging from -25°C to +50°C and is fully waterproof. Its robust design ensures reliable functionality, no matter the environment.

Replaceable battery pack

The new LPS 7i quick-change Li-ion battery provides more than 8 hours of operation. With support for USB Type-C direct charging and Power Delivery fast charging protocols, the battery can be recharged quickly without the need for special chargers. Additionally, it supports wireless charging for added convenience.

Customizable controls and user interface

The Lumion offers advanced functionality with a customizable user interface and programmable buttons. Users can personalize the menu layout and assign button functions to prioritize specific features, creating a tailored observation experience.

Additional features

Fast aperture F/1.0 lens

Fast aperture F/1.0 lens

Built-in video recorder with 64GB internal memory

Built-in video recorder with 64GB internal memory

Frost-resistant AMOLED Display

Frost-resistant AMOLED Display

Dual Wi-Fi waveband support 2.4 / 5 GHz

Dual Wi-Fi waveband support 2.4 / 5 GHz

A selection of 9 color palettes

A selection of 9 color palettes

IPX7 Waterproof rated

IPX7 Waterproof rated

Wide range of operating temperatures (-25 to +50°C)

Wide range of operating temperatures (-25 to +50°C)

User mode

User mode
