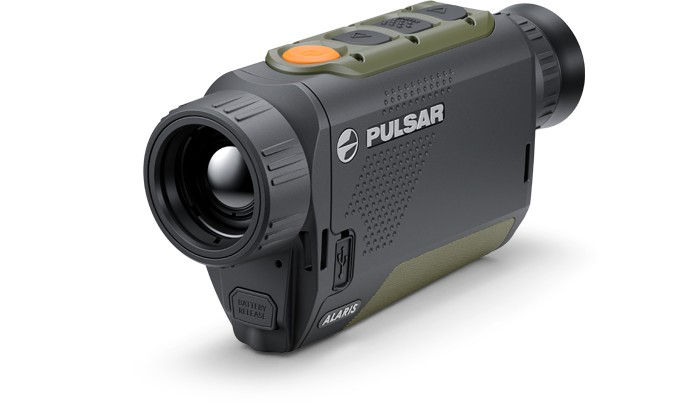

ALARIS XQ30

Name: ALARIS XQ30
Brand: Pulsar Wildlife USA
SKU: PL77518
Price: 1699.97 USD
Availability: InStock

Thermal Imaging Monoculars

The Alaris XQ30 is a compact thermal imaging monocular with a 384x288 sensor, 2-8x magnification, 1050m detection range, IPx7 waterproofing, and 16GB built in memory. Shop at Pulsar Wildlife USA.

SKU: SKU:PL77518

$1,699.97

Sale Sold out

Main specifications

Sensor

@17µm 384×288

Objective lens

F30/1.2

Magnification, x

2 – 8 (x4 zoom)

FOV (HxV), degrees

13.3 x 10

FOV (HxV), m@100m

23.3 x 17.5

Detection range

1050 m

Sensor

Type

uncooled

Resolution, pixels

384×288

Pixel pitch, µm

Sensor NETD, mK

< 25

System NETD, mK

< 20

Frame rate, Hz

Optics

Magnification, x

2 – 8 (x4 zoom)

FOV (HxV), m@100m

23.3 x 17.5

FOV (HxV), degrees

13.3 x 10

Eye relief, mm

Objective lens

F30/1.2

Display

Type

AMOLED HD

Resolution, pixels

640×400

Range performance

Detection range, m

1050 m

Video recorder

Video / photo resultion, pixel

528×400

Video / photo format

.mp4 / .jpg

Build-in memory, GB

WI-FI

Wireless protocol

Wi-Fi

Wireless standard

IEEE 802.11 b/g/n/ac (WPA)

Frequency, Ghz

2.4 / 5

Environmental characteristics

Degree of protection IP code (IEC60529)

IPX7 (waterproof)

Operating temperature range, °С

-20 – +40

Connections and compatibilities

Mount type

1/4″

Supported application

Wild Vision

Power supply

Output voltage, V

3.0 – 4.2

Battery type

APS 3 Li-ion Battery Pack

Capacity, mAh

3200

Operating time on battery pack, hat t=22°С

7.5

External power supply, V

5 (USB Type C)

Weight & size

Body material

Magnesium alloy

Dimensions, mm

144x41x69

Weight, kg

0.3 (with battery)

View full details

Features Specs Accessories

Highly sensitive thermal imaging sensor

Equipped with a professional-grade thermal imaging sensor, the Alaris offers low-noise performance, delivering detailed images with high contrast in a variety of conditions—perfect for capturing the beauty of nature at any time of day.

Compact pocket-sized design

The Alaris pocket-sized housing fits seamlessly into your hand, making it an ideal companion for wildlife observation, birdwatching, and outdoor exploration. Its symmetrical design and intuitively placed buttons ensure comfort for both left- and right-handed users.

Rugged magnesium alloy housing

Engineered for durability, the Alaris features a rugged magnesium alloy housing that protects against drops, shocks, and harsh weather conditions. This lightweight yet robust design enhances heat dissipation, reducing image noise and ensuring stable operation during extended observations.

A selection of 9 color palettes

Customize your thermal imaging experience with a choice of nine color palettes. Optimize the display for various observation scenarios and conditions:

White Hot, Black Hot, and Red Hot for clear object detection.
Rainbow and Ultramarine for enhanced recognition and identification.
Red Monochrome, Sepia, and Violet for extended night-time viewing.
Green for more comfortable viewing with reduced eye strain.

Sensitivity amplification levels

With three levels of sensitivity amplification, the Alaris ensures superior performance under challenging conditions, such as heavy weather or high humidity. Advanced filtration algorithms, along with adjustable brightness and contrast settings, deliver precise rendering of wildlife and background details.
